SOME
MATERIAL COMPOSITION CHARACTERISTICS OF THE MAFIC-ULTRAMAFIC INTRUSIONS IN
AND
TRẦN
QUỐC HÙNG, BÙI ẤN NIÊN, PHẠM THỊ DUNG, HOÀNG VIỆT HẰNG
Institute of Geological Sciences, Hoàng Quốc Việt Road, Cầu Giấy,
Hà Nội.
INTRODUCTION
The mafic-ultramafic intrusions widespread in
1. The dunite-peridotite assemblage consists of
Hiệp Đức, Khe Mây, Làng Hồi ultramafic massifs extending commonly in
sublatitudinal direction along the Hiệp Đức - Khe Mây - Làng Hồi strip; Đắk Sa,
Đắk Nai massifs extending in sublongitudinal direction along the Đắk Sa - Đắk
Gley - Plei Weck strip, of which the Plei Weck massif is mainly composed of
pyroxenite which was altered by amphibolization.
In general, the ultramafic massifs in the study area
are of small size and strongly altered by serpentinization and talcization.
2. The rocks of gabbro-pyroxenite assemblage are fairly
widespread in many places and were formed in various periods. They include 2 varieties:
titanium-low gabbro-pyroxenite and titanium-high gabbro-pyroxenite.
a. Titanium-low gabbro-pyroxenite forms small
bodies, extending in the deformation direction of the country rocks in Re River,
Cheo Reo, Kông Plông areas. The main rock types include pyroxenite, gabbro-pyroxenite,
gabbro, gabbroamphibolite.
The titanium-low gabbro-pyroxenite intrusions
occur also in areas with wide distribution of ultramafic rocks, such as: Tam Kỳ
- Núi Vú - Hiệp Đức - Làng Hồi - Phớc Sơn [Nguyễn Xuân Bao et al, 2001],
Đăk Sa - Ngọc Hồi - Plei Weck. They are usually present in the form of small,
elongated massifs and bodies and in conformity with the country rocks.
Besides, they are also widespread along a strip
extending in sublatitudinal direction from Bà Nà to Bol Kol. On the 1: 500,000
and 1: 200,000 scale geological maps these intrusions are attributed to the Chà
Vằn Complex.
A prominent feature of these intrusions is that in
their chemical composition they have relatively low TiO2 content (TiO2<1%),
and rather high magnesium and aluminium content.
b. Titanium-high gabbro-pyroxenite. These intrusions are in the form of dikes,
widespread and highly concentrated in Phú Mỹ, Bồng Sơn and An Lão areas. In
their petrographic composition they consist of gabbro, amphibole gabbro,
gabbroamphibolite and amphibolite. The prominent characteristics in chemical
composition of these rock types are high in iron, high in titanium (TiO2>1%),
low in aluminium and in magnesium
content. These intrusions are attributed to Early Neoproterozoic.
Besides, titanium-high gabbro-pyroxenite of
younger age, about Middle-Late Triassic occurs also in Phú Lộc, An Lợi, Bạch Mã
areas. In petrographic composition the rocks consists of amphibole gabbro,
gabbro,
gabbro-pyroxenite. In chemical composition, they have high
TiO2 (over 1% to 2%), iron and phosphorus content, and low magnesium
content.
3. The gabbro-peridotite assemblage including the
Khe Dung, Chà Vằn, etc., massifs, widespread mainly in Giằng area, has more
diverse petrographic composition ranging from plagioperidotite through
melanogabbro, olivine gabbro, gabbronorite to amphibole gabbro. Its rocks are
different from those of the gabbro-pyroxenite assemblage by high magnesium,
moderate and low titanium (about 1%) content.
In brief, the previous study results have established
the characteristics of geological structure, shape and size of the intrusive massifs
and their relationship with the country rocks as well as their basic material composition,
such as petrography, petrochemistry.
These results are valuable and important for
further studies. However, besides the mineral composition of some massifs of Chà
Vằn Complex, no evaluation in respect to the forming temperature, pressure and
no justification on geodynamic conditions related to the mineralization process
have been made.
On the basis of new analysis data and the results
of previous studies by other researchers and the authors of this paper, we would
like to contribute to the exchange of ideas and to the solution of the outstanding
above mentioned problems.
Our studies have been concentrated on some
mafic-ultramafic massifs widespread in the study area of the State level
research project DTDL-2003/07, which include: Hiệp Đức massif in Hiệp Đức - Khe
Mây - Làng Hồi strip of commonly sublatitudinal extending direction; Đăk Sa,
Plei Weck massifs of Đăk Sa - Đăk Gley - Plei Weck strip of sublongitudinal
extending direction, a gabbro massif near Đăk Nai village, Đăk Mon commune, Đăk
Gley district that had previously been attributed to Núi Ngọc Complex.
I. GEOLOGICAL CHARACTERISTICS
In general the ultramafic massifs of the above
zones are usually of very small size, elongated shape and associated with cherty
sedimentary, mafic - intermediate effusive formations metamorphosed to various
degrees. The geostructural characteristics and size of the massifs have been
described rather adequately in the reports of the 1: 500,000 and 1:200,000 scale
geological mapping projects, therefore we do not describe them here. These
massifs have been all attributed by the previous authors- geologists of the
Geological Division No 6 under the editorship of Nguyễn Xuân Bao - to the
ophiolite assemblage.
All of these massifs have the common characteristics
that at the inner contact zone the rocks are strongly altered by serpentinization,
talcization, carbonatization, phlogopitization, etc.
In the area of Hai village, Quế Bình commune,
Phớc Sơn district, 300 m from the bridge in the direction to Khâm Đức, on the
side of the newly built road occur ultramafic rocks
exposed continuously on about 200 m. The ultramafic massif has a very clearly
tectonic contact with the terrigenous sediments of A Vơng Formation. Its
extending direction coincides with the strike direction of the sedimentary
country rocks. Along the contact zone the rock is crushed, crumbled in a chaotic
manner, no indication of hot contact has been seen.
Continuing the field trip in the direction to Khâm
Đức, at a distance of about 7-8 km, in the area of Làng Hồi occur again
ultramafic rocks which are strongly serpentinized and compressed as in the area
near Hiệp Đức bridge.
The rocks surrounding the ultramafic bodies in Plei
Weck area, of which the typical one is the Plei Weck massif occurring on both sides
of Pô Cô River, which now belongs to the reservoir of the Ya Ly hydropower plant,
are composed of stratified chlorite schist and actinolite schist which are strongly crumbled. In these rocks there are many pockets
and lenses of tremolite schist, which increase in amount with the height. Higher
in the section there is amphibole schist penetrated by amphibole plagiogranitogneiss.
According to the description by Nguyễn Xuân Bao et
al. [Geology and mineral resources of South Việt Nam, 1994, in Archives], in the
country rocks in Plei Weck area are met also basalt and andesite effusive
formations which are chaotically arranged; in some places they are in stratified
form containing lenses of pyroxenite or dunite with chrome-magnetite.
II. PETROGRAPHIC CHARACTERISTICS
In the Hiệp Đức, Khe Mây, and Đăk
Sa ultramafic massifs, the main petrographic components
are serpentinized and talcized dunite and peridotite. The main mineral components
are serpentinized and talcized olivine occupying about 90-95% in dunite and about
65-85% in peridotite, pyroxene occupying 5-7%; the rest consists of tremolite, chromite,
magnetite, phlogopite. Especially, in some samples from
Khe Mây massif occur small grains of colourless corundum regularly distributed in
the rock.
Serpentinites are met in larger amount in the areas
crossed by faults, near tectonic fractures and contact zones. The rocks are of yellowish
green colour, banded structure, in mineral composition composed mainly of serpentine
up to 60-90%; other minerals include calcite, tremolite, epidote, sulfides, chromite
and magnetite. In many samples magnetite occupies up to 10-15%, in small grains
regularly distributed in the rock.
In Plei Weck area the rocks are of relatively diverse
in composition, consisting of amphibolized pyroxenite, gabbro, gabbrodiorite and
diabase.
The pyroxenite here is medium-grained, amphibolized
and talcized, composed mainly of amphibolized monoclinic pyroxene of large plate
form, orthopyroxene of elongate, small-grained form, occupying 2-3% of the rock
mass. Besides, phlogopite of small, elongate scale form, in some places epidote,
saussurite and some acicular crystals of rutile are also met.
The pyroxenite is completely amphibolized, consisting
of rather symmetrical platy hornblende crystals of various size.
Besides, in the rock occur also tremolite, talc, some scales of muscovite, some aggregations of multicoloured epidote. Disseminated sulfide
ore minerals occupy 2-3%.
Mafic rocks include melanogabbrodiorite and green
small-grained diabase in 2 m thick dike form. They are met only on the north side
of the Ya Ly hydropower reservoir.
In a small stream emptying into the reservoir we met
amphibolized pyroxenite as above described, penetrated by gabbrodiorite, leucocratic
diorite and diabase which are in the dike form.
In the area near Đăk Nai village, Đăk Mon commune,
Đăk Glei district there is a gabbroid massif attributed by geologists of
Geological Division No 6 to Núi Ngọc Complex. In this locality we found both
gabbronorite and gabbrodiorite.
The amphibole gabbro is of medium to small grain size,
melanocratic, containing amphibole up to 60-65%, plagioclase 30-35% in the form
of small, isometric crystals with clear twinning. In the samples occurs also small
amount of disseminated sulfide ore and epidote. The rocks are of oriented structure
because the amphibolite is oriented in a fixed direction.
In some places the amphibole gabbro is more intensively
altered. Here biotite, quartz and calcite are also met.
The gabbronorite is of medium grain size, melanocratic,
where colour minerals occupy up to 70%. The main mineral component is pyroxene,
accompanied by plagioclase, biotite and some grains of quartz.
Amphibole gabbro is of medium to small, regular grain
size, melanocratic, relatively fresh, weakly oriented. In mineral composition it
is composed of amphibole, plagioclase, biotite and fine-grained disseminated ore
minerals.
Amphibole occupies about 50%, with clear orientation, the crystals are usually of elongate form (1:3).
Plagioclase occupies about 40% of the rock mass, in platy, twinned form, relatively
fresh. Only some grains are sericitized. Biotite occupies about 7-8%, of red brown
colour. Besides, small, well idiomorphic biotite crystals are also met encrusted
in the amphibole.
The study gabbroid massifs study have much simpler
petrographic composition than those of typical stratified types in the north,
such as Núi Chúa, Khao Quế, etc. massifs. Here, we usually meet only 4-5 rock
types, in the mean time the differentiated massifs of Núi Chúa type have the
number of rock types by 3-4 times greater. This shows clearly their difference
in chemical composition.
The gabbroid massifs of Núi Chúa types in the geological
structures of
III. CHEMICAL COMPOSITION CHARACTERISTICS

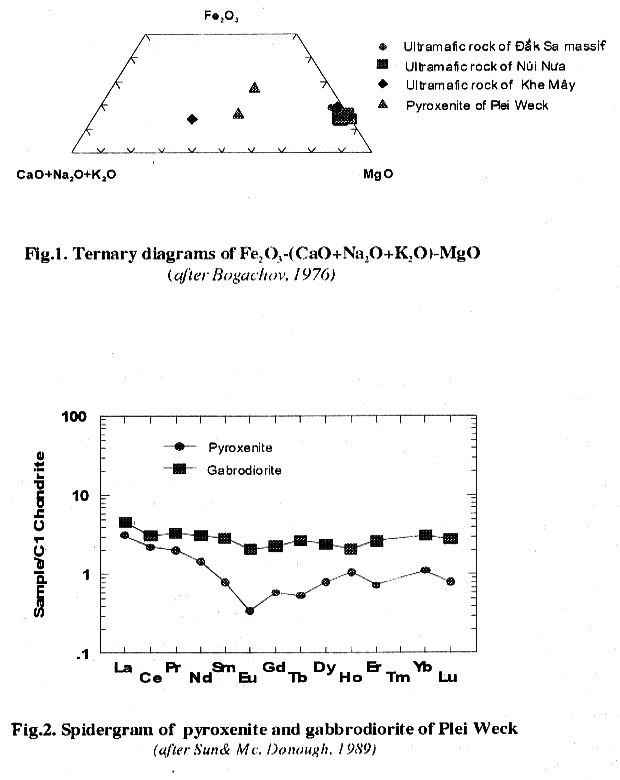

The chemical composition of ultramafic rocks distributed
in
The analytical results show that, although the
composition of the ultramafic rocks of Đăk Sa, Khe Mây and Plei Weck massifs are
different, they all have very low TiO2 (0.036-0.014%) and alkali
content and they are divided into two distinct rock groups: the ultramafic rocks
of Đăk Sa and Khe Mây massif, and the sub-ultramafic rocks (Plei Weck massif
mainly composed of pyroxenite, besides in some places at the margin of Khe Mây
massif).
Table 1. Chemical
composition of ultramafic rocks in
N |
Samples |
Massif |
SiO2 |
TiO2 |
Al2O3 |
Fe2O3 |
MnO |
MgO |
CaO |
Na2O |
K2O |
P2O5 |
Total |
1 |
94/86 |
Đăk
Sa |
45.81 |
0.037 |
0.51 |
8.66 |
0.124 |
44.29 |
0.15 |
0.37 |
0.01 |
0.037 |
100.00 |
2 |
95/86 |
Đăk
Sa |
44.98 |
0.036 |
0.38 |
8.24 |
0.121 |
45.66 |
0.17 |
0.36 |
0.01 |
0.037 |
100.00 |
3 |
96/86 |
Đăk
Sa |
46.82 |
0.139 |
1.82 |
9.71 |
0.116 |
39.45 |
1.53 |
0.35 |
0.05 |
0.035 |
100.02 |
4 |
98/86 |
Đăk
Sa |
46.32 |
0.035 |
1.58 |
8.01 |
0.116 |
42.77 |
0.71 |
0.35 |
0.01 |
0.035 |
99.94 |
5 |
99/86 |
Đăk
Sa |
44.32 |
0.036 |
0.40 |
8.55 |
0.112 |
46.04 |
0.12 |
0.37 |
0.01 |
0.035 |
99.99 |
6 |
231/78 |
Núi Na |
43.61 |
|
0.49 |
7.61 |
0.190 |
47.36 |
0.01 |
0.01 |
0.01 |
0.094 |
99.38 |
7 |
260/78 |
Núi Na |
42.55 |
0.012 |
0.43 |
9.27 |
0.160 |
46.85 |
0.01 |
0.01 |
0.01 |
|
99.30 |
8 |
301/78 |
Núi Na |
46.57 |
0.114 |
0.79 |
7.63 |
0.110 |
42.41 |
0.96 |
0.56 |
0.11 |
0.011 |
99.27 |
9 |
275/78 |
Núi Na |
42.49 |
0.094 |
0.87 |
7.64 |
0.110 |
45.81 |
1.24 |
0.96 |
0.12 |
0.024 |
99.36 |
10 |
290/78 |
Núi Na |
45.15 |
0.058 |
0.73 |
7.68 |
0.058 |
43.25 |
0.81 |
1.25 |
0.22 |
0.012 |
99.22 |
11 |
212/78 |
Núi Na |
47.49 |
|
1.15 |
7.39 |
0.174 |
42.02 |
0.62 |
0.02 |
0.06 |
0.093 |
99.02 |
12 |
334/78 |
Núi Na |
44.54 |
0.116 |
1.03 |
7.37 |
0.035 |
44.25 |
1.09 |
0.54 |
0.28 |
0.012 |
99.26 |
13 |
321/78 |
Núi Na |
46.16 |
0.115 |
0.72 |
8.20 |
0.069 |
42.62 |
1.12 |
0.21 |
0.56 |
0.011 |
99.79 |
14 |
285/78 |
Núi Na |
48.18 |
|
0.48 |
8.02 |
0.104 |
41.94 |
0.44 |
0.01 |
0.01 |
0.081 |
99.27 |
15 |
DL
002 |
Hiệp
Đức |
46.90 |
0.037 |
2.21 |
9.68 |
0.110 |
40.01 |
0.49 |
0.30 |
0.13 |
0.030 |
100.00 |
16 |
DL002/2 |
Hiệp Đức |
49.10 |
0.14 |
16.37 |
4.82 |
0.113 |
11.38 |
15.47 |
2.48 |
0.16 |
0.045 |
100.00 |
17 |
DL808/1 |
Plei
Weck |
55.67 |
0.05 |
4.57 |
10.66 |
0.23 |
18.14 |
8.85 |
0.66 |
0.12 |
0.03 |
100.00 |
18 |
DL809/1 |
Plei
Weck |
57.46 |
0.04 |
2.61 |
6.70 |
0.14 |
18.63 |
13.61 |
0.64 |
0.14 |
0.03 |
100.00 |
Notes: 1, 2, 7, 8, 10, 13: Dunite; 5, 15: Serpentinized dunite;
3, 4, 8, 10, 11, 13, 14: Peridotite;
16: Serpentinized peridotite; 17, 18: Amphibolized pyroxenite.
The ultramafic rocks of Đăk Sa massif consist of
strongly serpentinized dunite and peridotite with MgO content from 39.45% to
46.04%, TiO2 from 0.035% to 0.139%, K2O from 0.012% to
0.046%; Na2O from 0.35% to 0.37% (Table 4). Besides, we also see that
the alumina and silica content in these rocks is very low: Al2O3
from 0.38% to 1.82%; SiO2 from 44.32% to 46.82%.
The peridotite of Khe Mây massif is basically
similar in chemical composition to that Đăk Sa massif (Table 1), high in
magnesium, low in titanium and alkali.
The sub-ultramafic rocks include pyroxenite and plagioperidotite,
both strongly altered by serpentinization and amphibolization. They are the main
components of Plei Weck massif. Similar to true ultramafic rocks, they are all characterized
by very low titanium and alkali content: TiO2 from 0.038% to 0.14%, K2O
from 0.12% to 0.16%. Other components, such as silica, alumina, calcium are all higher: SiO2 from 49.01% to
57.46%, Al2O3 from 2.61% to 16.37%, CaO from 8.85% to
15.47%. The rocks have low magnesium content (MgO varies from 11.38% to
18.63%). Among the sub-ultramafic rocks the plagioperidotite of Khe Mây massif is
different from pyroxenite of Plei Weck massif by drastically higher Al2O3
content (16.37%) and CaO, Na2O being also higher (Table 1). This is also
a problem to be noted in further investigations.
In general the ultramafic and sub-ultramafic rocks
of Đăk Sa and Khe Mây massifs are in chemical
composition and hydrothermal alteration quite similar to those widespread in Tạ
Khoa area, Sơn La province.
In the three component diagram (CaO+Na2O+K2O)
- (Fe2O+FeO) - MgO (Fig. 1), the ultramafic rocks in the Central
Highlands and Central Việt Nam lie both in the field of chromite mineralization
potential (e. g. Núi Na) and in that of therocks with copper- nickel
mineralization potential. Besides, a comparison of the variation characteristics
of oxides SiO2,
Al2O3, å FeO, CaO
and Na2O+K2O in relation with MgO of the main rock types
shows that the ultramafic rocks in Đăk Sa, Khe Mây massifs are quite similar to
the dunite - harzburgite of Sông Mã zone and the oceanic crust [7].
Although they have similar characteristics as
above mentioned, so far still no chromium or Cu-Ni ore deposit of economic
values related with mafic- ultramafic intrusions in the Central Việt Nam and
Central Highlands have been discovered like those in the North Việt Nam. Indications
of disseminated pyrite and chalcopyrite mineralization has been only met
in the contact zone of the Đăk Sa ultramafic massif.
The above mentioned geostructural characteristics
of the ultramafic massifs in the study areas show that they are formed in small
bodies and have been subjected to strong hydrothermal alteration. This proves that
they have been subjected to more intensive and complicated effects of tectonic processes,
and as a result they were compressed, crushed into many fragments before being emerged
to their present position. In other words, these ultramafic bodies were emerged
from the depth, wedging into the upper layers of the continental crust of the
The distribution characteristics
of rare and rare earth elements in Table 2 shows that the light REE
content is low. The Nb/Ta ratio is very high, varying from 50 to 137,
characterizing the composition of the primary mantle. This proves that the
original composition of the magma which formed the mafic - ultramafic rocks of
Đăk Sa - Đăk Gley - Plei Weck strip basically was not
contaminated by the elements from the earth crust.
The distribution of REE in Fig.2 shows that in general
the distribution line of elements is a horizontal line,
it is a distribution line characterizing the mafic-ultramafic rocks which are not
much contaminated with the components of the Earth crust layer, rather similar to
the variation line of the mafic-ultramafic rocks distributed in the ocean ridge.
However, on the diagram we see that the content of lanthanum is slightly higher
than normal value; this may be caused by the effect of the weathering process that
occurred later, because the mafic-ultramafic rocks of the study areas have been
strongly altered due to later tectonic activities. These are only preliminary remarks
to confirm the magmatic origin and geodynamic settings related to the formation
of the ultramafic intrusions in Plei Weck area, that need further additional studies.
IV. MINERAL COMPOSITION CHARACTERISTICS

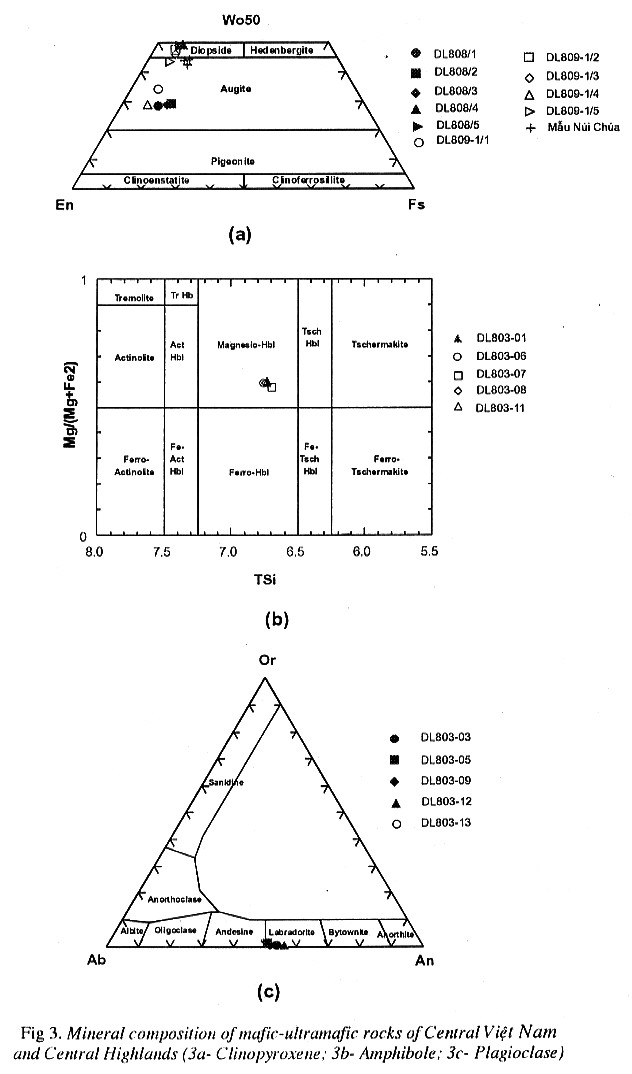

On the basis of the microprobe analysis of some rock
forming minerals such as clinopyroxene, amphibole and plagioclase (Tables 3, 4,
5), some remarks can be made as follows: on the illustration diagrams the content
of amphibole, clinopyroxene, plagioclase is quite concentrated (Fig. 3a, 3b, 3c),
reflecting a narrow range of variation in composition of the rock types. This proves
that the study gabbroids are less differentiated than the stratified gabbroids of
Núi Chúa type.
The results of microprobe analysis (Table 3, Fig.
3) show that clinopyroxene in the pyroxenite of Plei Weck massif consists of two
varieties: diopside and augite. Diopside has MgO content from 15.39% to 16.78%,
FeO from 4.20% to 4.85%, Al2O3 from 0.69% to 3.13%. The chemical
composition of augite varies as follows: MgO from 17.52% to 20.78%,
Table 2. Results
of analysis of rare and rare earth elements in pyroxenite (DL.809/1) and gabbro
of Plei Weck massif
Element |
DL-809/1 |
DL-809/4 |
Element |
DL-809/1 |
DL-809/4 |
V |
101 |
208 |
La |
0.75 |
1.1 |
Cr |
1428 |
113 |
Ce |
1.4 |
1.9 |
Co |
45 |
36 |
Pr |
0.19 |
0.31 |
Ni |
218 |
39 |
Nd |
0.68 |
1.4 |
Cu |
468 |
114 |
Sm |
0.12 |
0.44 |
Rb |
0.81 |
10 |
Eu |
0.02 |
0.12 |
Sr |
8.0 |
118 |
Gd |
0.12 |
0.47 |
Y |
1.3 |
3.8 |
Tb |
0.02 |
0.10 |
Zr |
51 |
29 |
Dy |
0.20 |
0.60 |
Nb |
4.4 |
1.5 |
Ho |
0.06 |
0.12 |
Ba |
10 |
38 |
Er |
0.12 |
0.44 |
|
|
|
Yb |
0.19 |
0.52 |
|
|
|
Lu |
0.02 |
0.07 |
|
|
|
Hf |
0.67 |
0.67 |
|
|
|
Ta |
0.03 |
0.03 |
|
|
|
Th |
1.3 |
0.78 |
|
|
|
U |
0.06 |
0.06 |
iron from 4.20% to
7.98%, calcium varies within a very narrow range from 12.62% to 13.02%. Differing
from diopside, the Al2O3 content in augite varies within a
wider range, from 1.40% to 5.01%. In general both augite and diopside have the typical
characteristics that they have high in SiO2, relatively high in Cr2O3
and richer in magnesium than the clinopyroxene in the gabbroids of Núi Chúa
massif.
In the three component diagram of En-Wo-Fs, the points
illustrating the composition of clinopyroxene, including diopside and augite are
close to En-Wo, proving that they have high MgO and CaO, and low iron content.
According to Lindsley's method of temperature determination,
diopside was crystallized in the temperature from 750oC to 800oC,
while augite was crystallized at the temperature of about 1200oC.
The results of studying thin sections show that the
pyroxenites of Plei Weck massif do not contain olivine. From here it is possible
to infer that the crystallization of the rock varieties of Plei Weck massif was
started from about 1200oC when crystallizing augite and terminated at
about 750oC to 800oC.
The chemical composition of clinopyroxene in the gabbroids
of Núi Chúa massif (Table 3, Fig.3a) shows that all of them are augite, but all
the points illustrating the composition of augite lie close to the line separating
augite and diopside.
All amphiboles in the gabbroids in the Central
Việt Nam and Central Highlands, according to the results of microprobe analysis
(Table 4, Fig.3b), are hornblende with high magnesium content.
Amphibole contains MgO (from 11.15% to 11.67%), CaO
(from 11.54% to 11.70%) and Al2O3 varying within a relatively
narrow range (from 9.22% to 9.73%). The iron content is from 15.75% to 16.03%, titanium
varies within a wider range than the content of the above oxides (from 1.37% to
1.55%).
The amphibole composition
diagram according to the results of microprobe analysis (Fig.3b) shows that the
amphiboles in the gabbroids in Đăk Nai, Đăk Gley areas are rather uniform.
The points illustrating their composition are nearly concentrated at one point in
the magnesium hornblende field.
Table 3. Chemical
composition of clinopyroxene in the ultramafic rocks of Plei Weck and Núi Chúa massifs
Sam-ples |
DL808 /1 |
DL808 /2 |
DL808 /3 |
DL808 /4 |
DL808 /5 |
DL809 -1/1 |
DL809 -1/2 |
DL809 -1/3 |
DL809 -1/4 |
DL809
-1/5 |
NC-1 |
NC-2 |
NC-3 |
SiO2 |
55.13 |
51.31 |
55.36 |
55.30 |
55.11 |
54.92 |
55.85 |
53.06 |
56.60 |
56.01 |
52.31 |
52.25 |
52.27 |
TiO2 |
0.00 |
0.09 |
0.03 |
0.04 |
0.06 |
0.02 |
0.01 |
0.00 |
0.05 |
0.00 |
0.82 |
0.84 |
0.78 |
Al2O3 |
1.40 |
5.01 |
3.50 |
1.15 |
1.40 |
2.63 |
0.69 |
0.78 |
3.13 |
1.21 |
2.48 |
2.46 |
2.36 |
FeO |
6.32 |
7.98 |
7.66 |
4.85 |
4.42 |
4.54 |
4.20 |
4.20 |
4.44 |
4.24 |
6.51 |
7.48 |
7.38 |
Cr2O3 |
0.22 |
0.65 |
0.41 |
0.28 |
0.40 |
0.37 |
0.35 |
0.48 |
0.54 |
0.39 |
0.30 |
0.29 |
0.27 |
NiO |
0.02 |
0.00 |
0.01 |
0.00 |
0.00 |
0.01 |
0.01 |
0.02 |
0.03 |
0.00 |
|
|
|
MgO |
19.65 |
17.52 |
18.78 |
15.39 |
15.81 |
18.91 |
16.78 |
16.07 |
20.78 |
17.56 |
15.59 |
15.62 |
15.06 |
CaO |
12.94 |
12.62 |
13.02 |
24.70 |
24.58 |
15.66 |
24.10 |
22.06 |
13.02 |
21.46 |
21.02 |
20.46 |
21.37 |
Na2O |
0.09 |
0.48 |
0.32 |
0.07 |
0.08 |
0.37 |
0.16 |
0.18 |
0.44 |
0.17 |
0.31 |
0.35 |
0.31 |
K2O |
0.00 |
0.09 |
0.05 |
0.00 |
0.00 |
0.06 |
0.00 |
0.04 |
0.09 |
0.03 |
|
|
|
Total |
95.78 |
95.75 |
99.13 |
101.77 |
101.86 |
97.49 |
102.15 |
96.88 |
99.12 |
101.07 |
99.34 |
99.75 |
99.80 |
Si4+ |
2.09 |
1.95 |
2.03 |
2.00 |
1.99 |
2.04 |
2.00 |
2.01 |
2.05 |
2.02 |
1.94 |
1.93 |
1.94 |
Al3+ |
0.06 |
0.22 |
0.15 |
0.05 |
0.06 |
0.12 |
0.03 |
0.04 |
0.13 |
0.05 |
0.11 |
0.11 |
0.10 |
Ti2+ |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
0.02 |
0.02 |
0.02 |
Fe2+ |
0.20 |
0.25 |
0.24 |
0.15 |
0.13 |
0.14 |
0.13 |
0.13 |
0.14 |
0.13 |
0.20 |
0.23 |
0.23 |
Cr3+ |
0.01 |
0.02 |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
0.02 |
0.01 |
0.01 |
0.01 |
0.01 |
Mg2+ |
1.11 |
0.99 |
1.03 |
0.83 |
0.85 |
1.05 |
0.90 |
0.91 |
1.12 |
0.95 |
0.86 |
0.86 |
0.83 |
Ca2+ |
0.53 |
0.51 |
0.51 |
0.96 |
0.95 |
0.62 |
0.93 |
0.89 |
0.51 |
0.83 |
0.84 |
0.81 |
0.85 |
Na+ |
0.01 |
0.04 |
0.02 |
0.01 |
0.01 |
0.03 |
0.01 |
0.01 |
0.03 |
0.01 |
0.02 |
0.03 |
0.02 |
Wo |
28.62 |
29.20 |
28.85 |
49.50 |
49.13 |
34.41 |
47.51 |
46.25 |
28.68 |
43.62 |
43.98 |
42.60 |
44.44 |
En |
60.47 |
56.40 |
57.90 |
42.91 |
43.97 |
57.81 |
46.03 |
46.88 |
63.69 |
49.66 |
45.39 |
45.25 |
43.58 |
Fs |
10.91 |
14.41 |
13.25 |
7.59 |
6.90 |
7.79 |
6.46 |
6.87 |
7.63 |
6.73 |
10.63 |
12.16 |
11.98 |
NC-1, NC-2, NC-3 clinopyroxene in gabbroid of Nói Chóa massif
The chemical composition characteristics of
plagioclase in the gabbroids of Đăk Nai, Đăk Ley areas (Table 5, Fig. 3c) show
that they have a rather stable composition. The variation in content of some
main oxides is as follows: SiO2 from 53.42% to 55.89%, Al2O3
from 27.91% to 29.16%, CaO from 10.60% to 11.73%, Na2O from 5.06% to
5.65%, K2O from 0.08% to 0.21%. On the diagram illustrating the Ab-Or-An
composition they are concentrated nearly at one point pertaining to labrador (Fig. 3c). In comparison with the plagioclase of the
gabbroids of Núi Chúa massif we can see a clear difference. The composition of plagioclase
in Núi Chúa Complex varies within a very wide range, from labrador
with An60-65 to bitaunite with An75-80 [3]. This once more
proves that differentiation of the gabbroids of Núi Chúa complex is higher than
that of the gabbroids widespread in the
DISCUSSION AND CONCLUSION
By analyzing and processing some results of recent
studies on material composition of some mafic and ultramafic massifs widespread
in the Central Việt Nam and Central Highlands compared with the results of
previous studies on the mafic and ultramafic rocks widespread in the North Việt
Nam, we have some preliminary remarks as follows:
1. Gabbroids widespread in the South have their
petrographic, mineral and chemical compositions different from those of the
gabbroids of Núi Chúa Complex. They usually do not contain olivine as in Phú
Lộc, Đăk Nai, Bạch Mã etc, characterized by high titanium
Table 4.
Chemical composition of amphibole in the ultramafic rocks of the Central Việt
Nam and Central Highlands
Samples |
DL803-01 |
DL803-06 |
DL803-07 |
DL803-08 |
DL803-11 |
SiO2 |
45.38 |
45.94 |
45.05 |
45.40 |
45.51 |
TiO2 |
1.46 |
1.37 |
1.49 |
1.55 |
1.50 |
Al2O3 |
9.30 |
9.59 |
9.73 |
9.27 |
9.22 |
FeO |
15.79 |
15.75 |
16.03 |
15.76 |
15.92 |
Cr2O3 |
0.03 |
0.04 |
0.03 |
0.01 |
0.05 |
MnO |
0.28 |
0.30 |
0.28 |
0.25 |
0.28 |
MgO |
11.55 |
11.51 |
11.15 |
11.50 |
11.67 |
CaO |
11.74 |
11.70 |
11.70 |
11.54 |
11.48 |
Na2O |
1.23 |
1.17 |
1.32 |
1.34 |
1.39 |
K2O |
0.89 |
0.91 |
0.96 |
0.88 |
0.76 |
Cl |
0.18 |
0.18 |
0.22 |
0.20 |
0.17 |
H2O |
2.00 |
2.00 |
2.00 |
2.00 |
2.00 |
Total |
99.84 |
100 |
97.96 |
99.70 |
99.94 |
Si4+ |
6.73 |
6.76 |
6.69 |
6.74 |
6.73 |
Al3+ |
1.62 |
1.66 |
1.70 |
1.62 |
1.61 |
Cr3+ |
0.00 |
0.00 |
0.00 |
0.00 |
0.01 |
Fe3+ |
0.22 |
0.22 |
0.19 |
0.22 |
0.27 |
Ti2+ |
0.16 |
0.15 |
0.17 |
0.17 |
0.17 |
Mg2+ |
2.55 |
2.52 |
2.47 |
2.55 |
2.57 |
Fe2+ |
1.74 |
1.72 |
1.80 |
1.74 |
1.70 |
Mn2+ |
0.04 |
0.04 |
0.04 |
0.03 |
0.03 |
Ca2+ |
1.87 |
1.84 |
1.86 |
1.84 |
1.82 |
Na+ |
0.35 |
0.33 |
0.38 |
0.39 |
0.40 |
K+ |
0.17 |
0.17 |
0.18 |
0.17 |
0.14 |
Cl |
0.05 |
0.04 |
0.06 |
0.05 |
0.04 |
Table 5.
Chemical composition of plagioclase in the ultramafic rocks of Central Việt Nam
and Central Highlands
Samples |
DL803-03 |
DL803-05 |
DL803-09 |
DL803-12 |
DL803-13 |
SiO2 |
53.42 |
55.89 |
54.75 |
54.46 |
54.88 |
TiO2 |
0.00 |
0.00 |
0.00 |
0.00 |
0.00 |
Al2O3 |
28.58 |
27.91 |
28.44 |
29.16 |
28.58 |
FeO |
0.11 |
0.07 |
0.14 |
0.06 |
0.10 |
MgO |
0.01 |
0.01 |
0.01 |
0.01 |
0.00 |
CaO |
11.21 |
10.60 |
10.74 |
11.73 |
11.08 |
Na2O |
5.29 |
5.65 |
5.56 |
5.06 |
5.31 |
K2O |
0.08 |
0.21 |
0.10 |
0.11 |
0.09 |
Total |
98.70 |
100.34 |
99.75 |
100.59 |
100.05 |
Si4+ |
9.79 |
10.04 |
9.90 |
9.79 |
9.90 |
Al3+ |
6.17 |
5.90 |
6.06 |
6.17 |
6.07 |
Fe2+ |
0.02 |
0.01 |
0.02 |
0.01 |
0.02 |
Ca2+ |
2.20 |
2.04 |
2.08 |
2.26 |
2.14 |
Na+ |
1.88 |
1.97 |
1.95 |
1.76 |
1.86 |
K+ |
0.02 |
0.05 |
0.02 |
0.03 |
0.02 |
Ab |
45.90 |
48.50 |
48.10 |
43.60 |
46.20 |
An |
53.70 |
50.30 |
51.30 |
55.80 |
53.30 |
Or |
0.50 |
1.20 |
0.60 |
0.60 |
0.50 |
Notes: Tables 1, 2, 3, 4 are the
analytical results of the State level research project DTDL-2003/07- analyzed at
the
content, 1-2%. The
results of rare earth analysis of the gabbroids of Phú Lộc and Khe Dung massifs
show that the contents of light REE are also higher, characterizing the rocks
that assimilated the materials from the earth crust during their formation [6].
2. The above indications may be caused by the difference
in composition of the earth crust in the Kon Tum Geoblock from that in the areas
of wide distribution of the gabbroids of Núi Chúa Complex.
3. In mineralization, different from the gabbroids
of Núi Chúa Complex which are potential in Cu-Ni, the gabbroids in the
4. The geological characteristics, material
composition including chemical composition of the main rock forming oxides, as
well as the rare and rare earth elements, show that the ultramafic rocks
widespread in the central part of the Central Highlands are similar to the
ultramafic rocks of Núi Na massif and the oceanic crust, i.e. they correspond
with the composition of ophiolite formations. Besides, they have also a
difference that some samples of ultramafic rocks in Khe Mây - Làng Hồi area
contain small crystals of corundum, while none is found in the North.
5. The characteristics related to the shape and
size of the massifs, as well as the diversity in mineralization, especially the
presence of corundum prove that the ultramafic intrusions in the study area were
formed in the geodynamic conditions which are different from the setting of in
the formation of ultramafic massifs in the ophiolite assemblage in the North
Việt Nam. However, in order to clarify the geodynamic settings as well as the
causes of forming corundum in ultramafic rocks in the region, there must be more
detailed studies.
This paper is finished under support of Project
"Research on the forming conditions and distribution rules of precious minerals
in relation to magmatic activities of Central and Tay Nguyen regions" – DTDL-2003/07
and the Fundamental Research Project No 71.10.04.
REFERENCES
1. Hoàng Hữu Thành, 1994. Mesozoic stratified
massifs of peridotite - gabbro in the North of Vietnam. Doctor thesis, (in Russian).
2. Ngô Thị Phượng et al.,
1995. Minerals of the platinum group
(Pt, Pd) in ultramafic intrusions of Sông Đà zone. J. Sci.
of the Earth, 17/4 : 157-163. Hà Nội
(in Vietnamese).
3. Poliakov G.V et al., 1996. Permian-Triassic mafic - ultramafic intrusions in
4. Trần Quốc Hùng et al., 1985.
New data on mineralization and differentiation and stratification
of Núi Chúa massif. Sci. Letter of Inst. of Sci., 2
: 54-59. Hà Nội
5. Trần Quốc Hùng, 1992. Mafic
- ultramafic intrusions in
6. Trần Quốc Hùng, Bùi ấn Niên, 1998. Composition characteristics and forming mechanism of
Khe Dung massif (North of Kon Tum uplift). J. of Earth Sciences, 2 : 39-45. Hà Nội (in Vietnamese).
7. Trần Quốc Hùng, 1999. Early Paleozoic ultramafic intrusions in North Central region of
8. Trần Trọng Hoà et al.,
1996. New results in the study on high
magnesium-ultrapotassic rocks in Northewst Việt
